Configure the channels you need
Use Optima for EEG as well as supported peripheral biosignals, depending on the model and sensors.
Neurobit Optimaâ„¢
Configurable EEG and biosignal acquisition.
Choose 2 or 4 channels, USB or BLE, and the sensor configuration that fits the way you work.
- Made in the European Union
- CE marked
- USB & BLE options
A compact system you can configure for the signals you actually use.
Optima is a family of small, configurable devices for neurofeedback, biofeedback, research and education. The differences between models are practical: channel count, access to the Optima+ extension interface, EEG-cap support and your choice of USB or wireless BLE.
Choose 2 or 4 channels, USB or BLE
The family ranges from a straightforward two-channel setup to a four-channel Optima+ system with an EEG-cap interface.
Keep your software options open
Optima works with Neurobit software, Brain-Trainer workflows and a range of supported third-party applications.
What can Optima measure?
Depending on the model and sensors, Optima can be configured for brain, muscle, cardiac and other physiological signals. Optima+ models add an extension interface for additional supported sensors.
EEG, EOG & SCP
Brain, eye-movement and slow-potential signal acquisition for supported workflows.
ECG / HRV & sEMG
Cardiac, heart-rate and muscle-activity measurement for biofeedback applications.
GSR, temperature, respiration & more
Skin conductance, temperature, respiratory effort and airflow; supported Optima+ configurations also add BVP and other compatible peripheral-sensor options.
Exact capabilities depend on the device model, sensors and software configuration.
Which Optima do you need?
1. Do you need 2 or 4 channels?
2. Do you need the Optima+ extension interface or EEG-cap support?
3. Do you prefer a fixed USB connection or wireless BLE?
Two channels

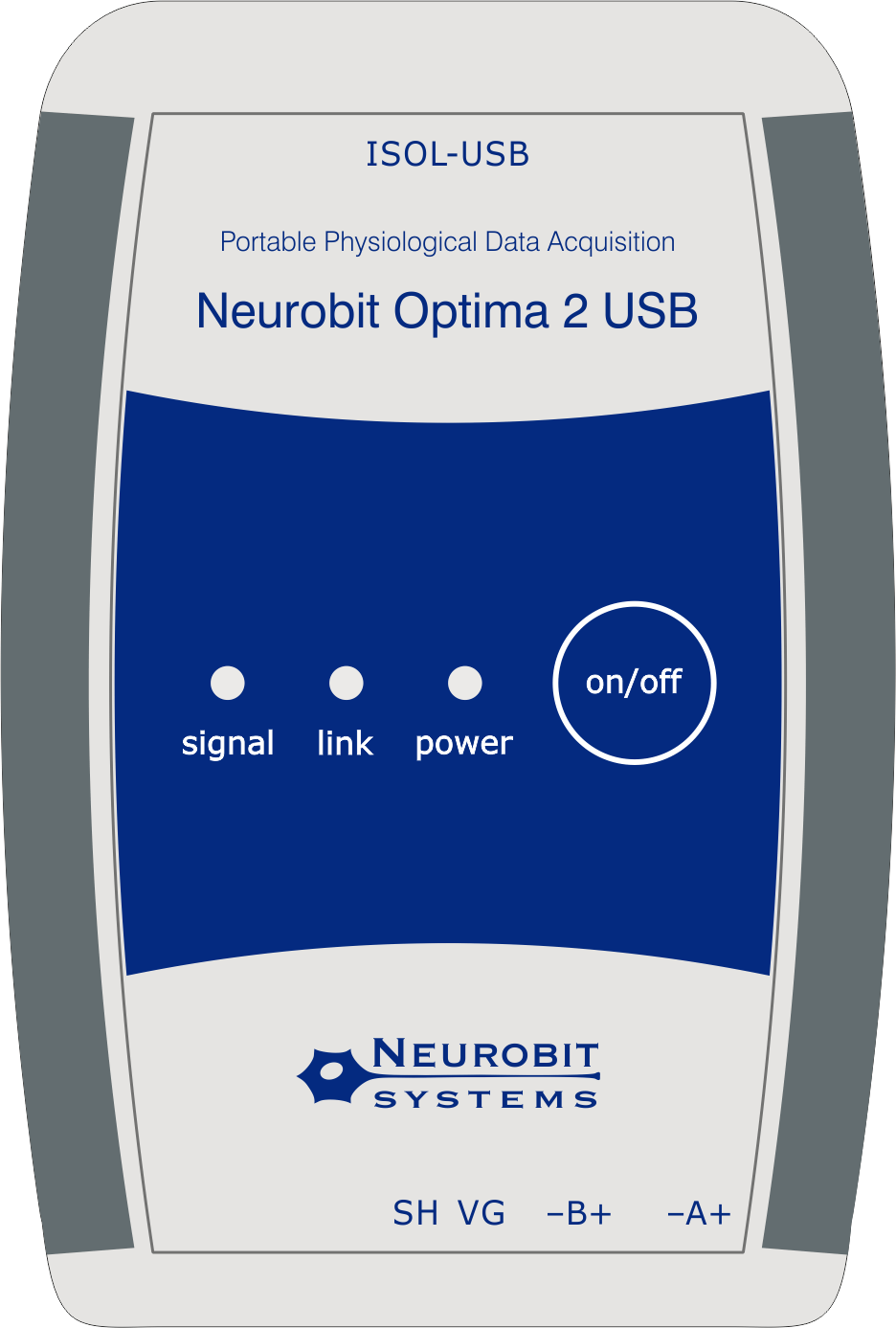

Optima 2
The straightforward choice when two configurable measurement channels are enough.
Use it for EEG and supported peripheral biosignals without the Optima+ extension interface.
Connection USB · BLE
Two channels + extension

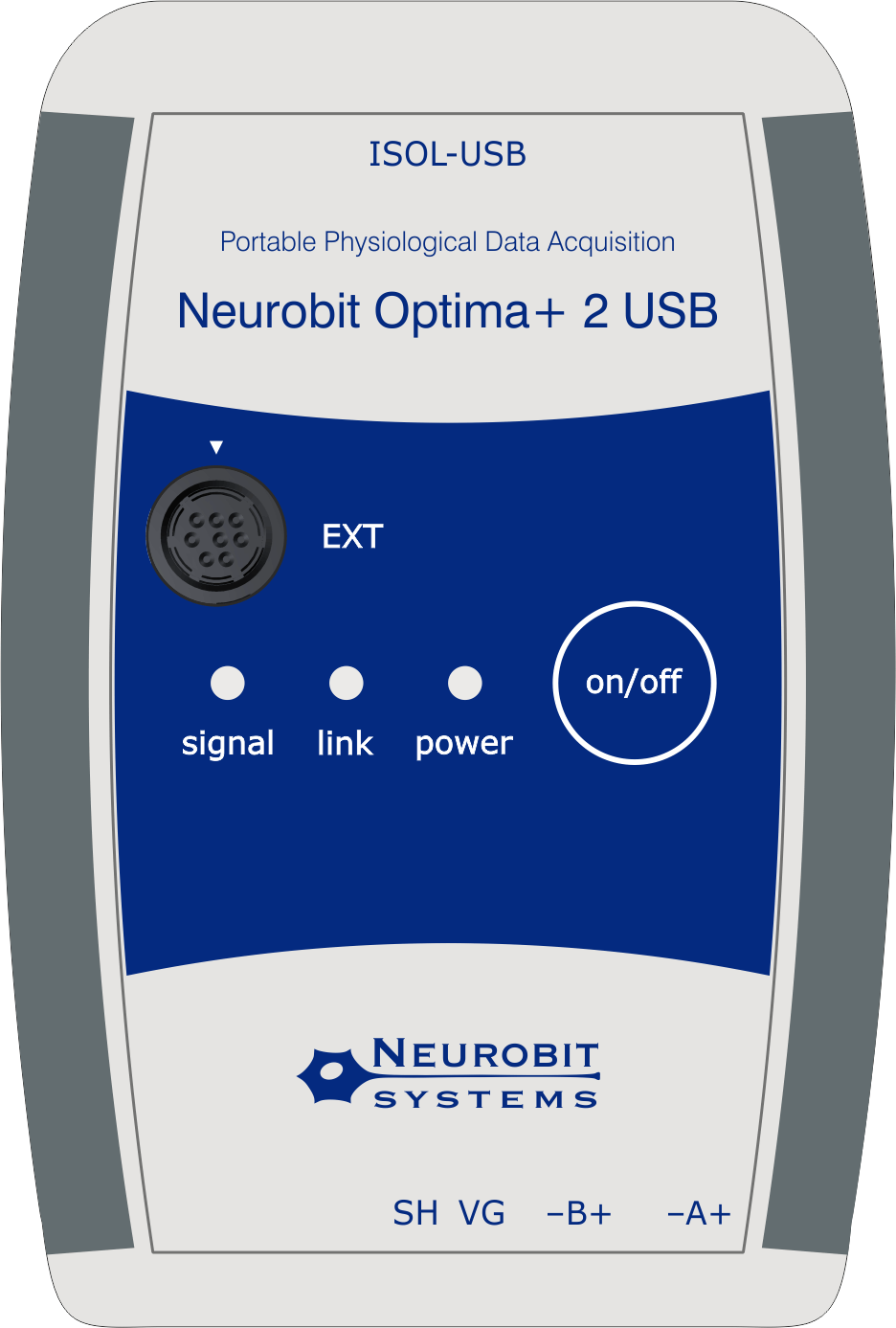

Optima+ 2
Choose this when you need two channels plus the Optima+ extension interface.
The extension interface adds support for additional compatible sensors and modalities.
Connection USB · BLE
Four channels + extension

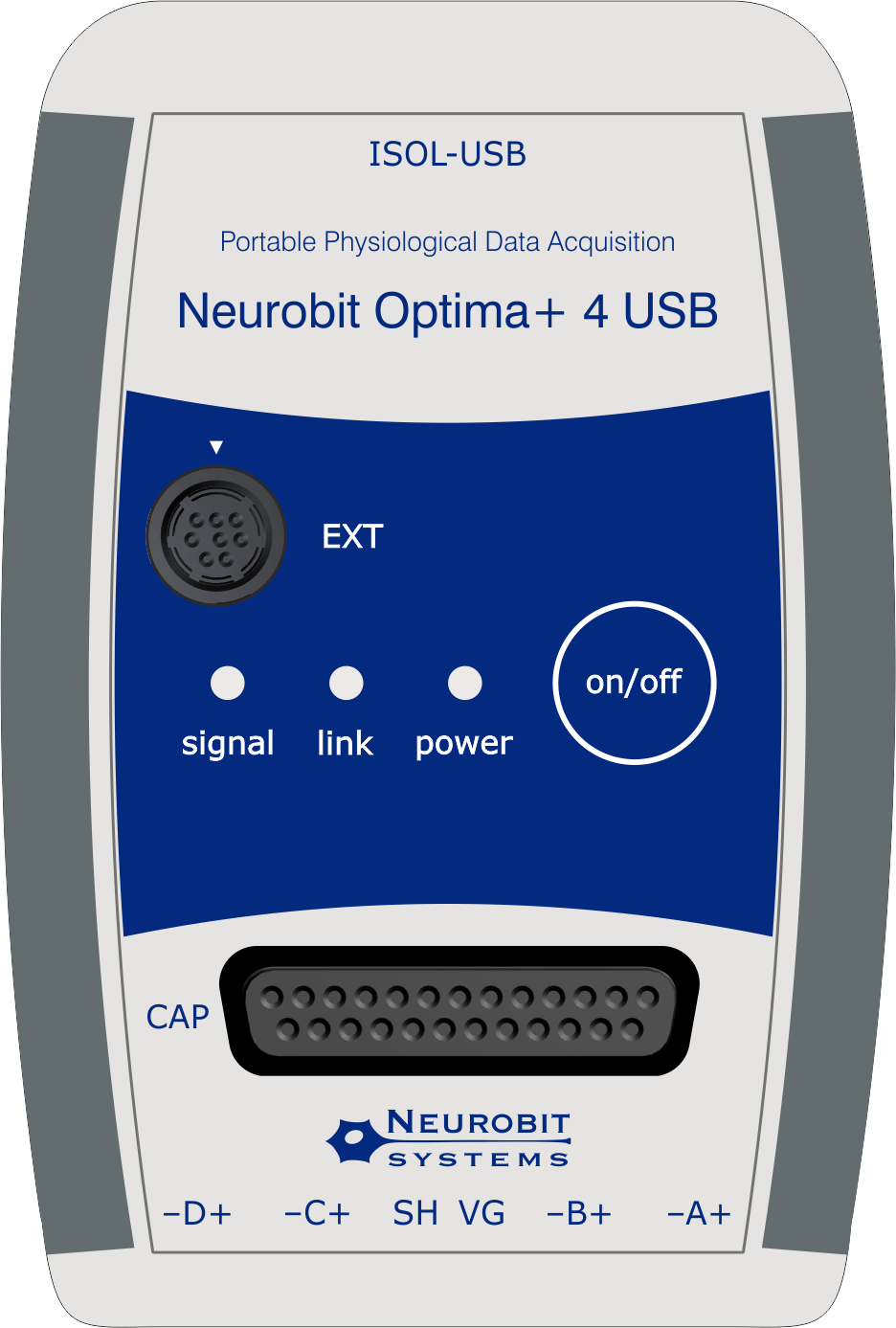

Optima+ 4
Start here if you need four configurable channels or an EEG cap.
Optima+ 4 combines four channels, the extension interface and software-configurable EEG-cap connections.
Connection USB · BLE
Not sure which one fits?
Tell us which signals you want to measure, how many EEG channels you need and which software you use. We can help narrow it down.
USB or BLE?
If the device will stay at one workstation most of the time, USB is usually the simpler choice. BLE is useful when fewer cables or more freedom of movement matter.
USB
Simple for a fixed setup.
Power and data travel over USB, with a galvanically isolated connection to the computer. There is no device battery to manage.
- Power and data over USB
- Galvanically isolated connection
- No device battery management
BLE
Choose BLE when you want fewer cables.
BLE models run on batteries and send data over Bluetooth Low Energy, which can be useful for mobile or less cable-dependent setups.
- Wireless Bluetooth LE data link
- 2 AA batteries
- More freedom around the workstation
Detailed model comparisonSix current configurations
| Model | Product code | Connection | Channels | EXT port | EEG cap | Next step |
|---|---|---|---|---|---|---|
| Optima 2 USB | 101012 | Isolated USB | 2 | — | — | Where to buy |
| Optima 2 BLE | 101015 | Bluetooth LE | 2 | — | — | Where to buy |
| Optima+ 2 USB | 101014 | Isolated USB | 2 | Yes | — | Where to buy |
| Optima+ 2 BLE | 101016 | Bluetooth LE | 2 | Yes | — | Where to buy |
| Optima+ 4 USB | 101022 | Isolated USB | 4 | Yes | Yes | Where to buy |
| Optima+ 4 BLE | 101025 | Bluetooth LE | 4 | Yes | Yes | Where to buy |
Model availability, required sensors and software support can vary.
Technical specifications
Use Optima with the software that fits your workflow.
Optima can be used with Brain-Trainer software as well as supported third-party applications. Neurobit also provides its own Runtime and Recorder.
Commonly used environments include BT2, BrainAssistant, BioEra, BioExplorer, EEGer and BrainBay. Other supported applications include BT4BE, Mind-Body Training Tools, Profeedback and SmartMind.
Compatibility varies by software version, operating system and device configuration. Check the current manufacturer documentation for the setup you plan to use.
Interested in becoming a Neurobit reseller?
If your company works with neurofeedback, biofeedback, EEG, research or related professional markets, tell us a little about your business and the market you serve.
Already using Neurobit Optima?
Start here for support, current documentation and device/software resources.
Manuals, setup guides and software tools
These selected user-facing resources are maintained by Neurobit Systems, the manufacturer. Core documentation is available in English, Spanish and Polish.
Start here
Core documentation for setup, use, safety and warranty.
Measurement guides
Practical manufacturer guidance for electrodes, sensors and common measurement setups.
Software & device tools
Current Runtime, firmware and utilities maintained by Neurobit Systems.
Software quick starts & data tools
About Neurobit Optima
Neurobit Optima and Optima+ devices are not medical devices. They are intended for neurofeedback and biofeedback training, scientific research, education, sports and related non-medical applications.
Made in the European Union. CE marked.
